Specifications

Size & Weight

DIMENSIONS (W X H X D)

Approx 39.2 x 109.5 x 16.0 mm

WEIGHT

Approx 82 g

General Features

BATTERY TYPE

Built-In Lithium Battery

BUILT-IN MEMORY

16 GB

BUILT-IN MICROPHONE

Stereo

CALENDAR SEARCH

Yes

LCD BACKLIGHT

Yes

MAXIMUM FILES PER FOLDER

199

MAXIMUM FILES (TOTAL)

5000

MENU LANGUAGE

DE/GB/ES/FR/IT/RU/KR/CS/CT/TR

PC CONNECTIVITY

Yes

PLAYBACK FORMAT

MP3/AAC/WMA/WAV/FLAC

RECORDING FORMAT

Linear PCM/MP3

USB CONNECTION CHARGING

Yes

Recording

MAX. RECORDING TIME LPCM 96KHZ, 24BIT

6 Hrs 35 Min

MAX. RECORDING TIME LPCM 48KHZ, 24BIT

13 Hrs 15 Min

MAX. RECORDING TIME LPCM 48KHZ, 16BIT

19 Hrs 50 Min

MAX. RECORDING TIME LPCM 44.1KHZ, 24BIT

14 Hrs 25 Min

MAX. RECORDING TIME LPCM 44.1KHZ, 16BIT

21 Hrs 35 Min

MAX. RECORDING TIME MP3 320KBPS

95 Hrs 25 Min

MAX. RECORDING TIME MP3 192KBPS

159 Hrs 0 Min

MAX. RECORDING TIME MP3 128KBPS

238 Hrs 0 Min

MAX. RECORDING TIME MP3 48KBPS (MONAURAL)

636 Hrs 0 Min

BATTERY LIFE FOR RECORDING LPCM 96KHZ, 24BIT

Approx 15 Hrs

BATTERY LIFE FOR RECORDING LPCM 48KHZ, 24BIT

Approx 15 Hrs

BATTERY LIFE FOR RECORDING LPCM 48KHZ, 16BIT

Approx 15 Hrs

BATTERY LIFE FOR RECORDING LPCM 44.1KHZ, 24BIT

Approx 20 Hrs

BATTERY LIFE FOR RECORDING LPCM 44.1KHZ, 16BIT

Approx 20 Hrs

BATTERY LIFE FOR RECORDING MP3 320KBPS

Approx 22 Hrs

BATTERY LIFE FOR RECORDING MP3 192KBPS

Approx 22 Hrs

BATTERY LIFE FOR RECORDING MP3 128KBPS

Approx 22 Hrs

BATTERY LIFE FOR RECORDING MP3 48KBPS (MONAURAL)

Approx 24 Hrs

FREQUENCY RESPONSE LPCM 96KHZ, 24BIT

40-40,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 48KHZ, 24BIT

40-21,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 48KHZ, 16BIT

40-21,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 44.1KHZ, 24BIT

40-20,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 44.1KHZ, 16BIT

40-20,000 Hz (0~-3dB)

FREQUENCY RESPONSE MP3 320KBPS

40-20,000 Hz (0~-3dB)

FREQUENCY RESPONSE MP3 192KBPS

40-18,000 Hz (0~-3dB)

FREQUENCY RESPONSE MP3 128KBPS

40-16,000 Hz (0~-3dB)

FREQUENCY RESPONSE MP3 48KBPS (MONAURAL)

40-14,000 Hz (0~-3dB)

MANUAL RECORDING LEVEL ADJUSTMENT

Yes

SCENE SELECT

Yes

CROSS-MEMORY RECORDING

Yes

PRE-RECORDING

Yes

SYNC RECORDING FUNCTION

Yes

RECORDING MONITOR

Yes

LIMITER FUNCTION

Yes

NOISE-CUT FILTER

Yes

LOW-CUT FILTER

Yes

ADD/OVERWRITE RECORDING

No

FM RADIO RECORDING

No

AM RADIO RECORDING

No

VOR

Yes

REMOTE CONTROL APP FROM SMARTPHONE (REC REMOTE)

Yes

Playback & Edit

A-B REPEAT

Yes

ALARM PLAYBACK

No

DIGITAL PITCH CONTROL (SPEED CONTROL)

Yes

DIGITAL VOICE UP

Yes (Clear Voice)

DIVIDE

Yes

EASY SEARCH

Yes

ERASE

Yes

FILE COPY

Yes

FOLDER NAME CHANGE (WITHOUT USING PC)

Yes

FULL DIGITAL AMPLIFIER

No

GRAPHIC EQUALIZER

Yes

KEY CONTROL

Yes

MOVE FILE

Yes

NOISE CUT

Yes (Clear Voice)

PROTECT

Yes

TRACK MARK

Yes

Interface

INPUT AND OUTPUT TERMINALS

Microphone/External input jack (minijack, stereo) Headphone jack (minijack, stereo) USB connector (Type-A) High-Speed USB compatible microSD memory card slot

BLUETOOTH

Communication method: Bluetooth Standard version 4.0 Maximum communication range: approx. 10 m (33 ft) Frequency band: 2.4 GHz band (2.4000 GHz - 2.4835 GHz) Compatible Bluetooth profiles: A2DP/AVRCP/SPP Supported Codec: SBC

NFC

Yes

What's In The Box

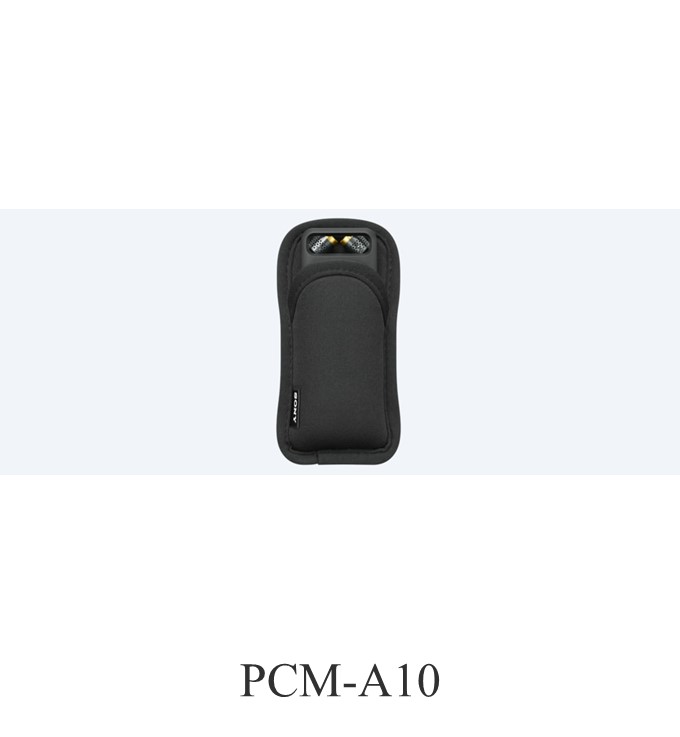

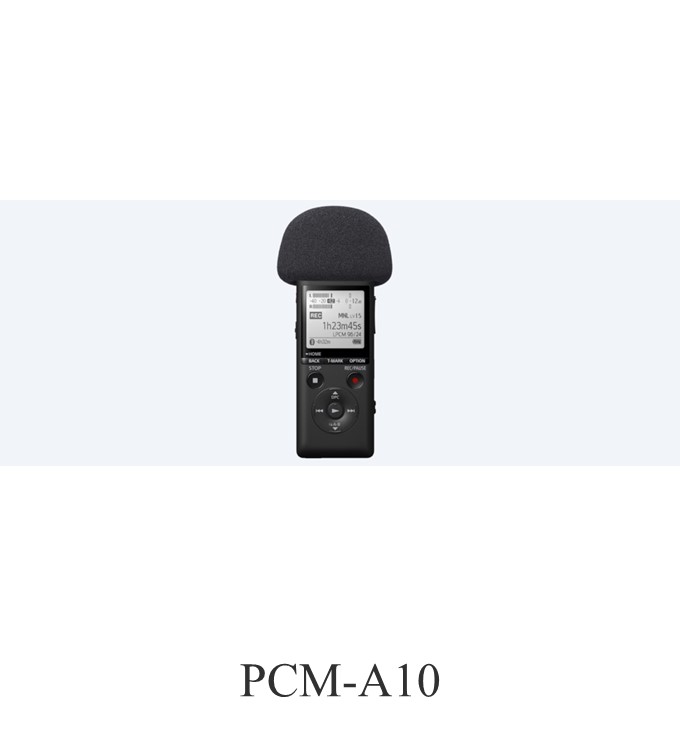

• =       PC Application Software (Sound Organizer2/Stored in built-in memory) , Wind screen, Carrying Case
