Specifications

Size & Weight

DIMENSIONS (W X H X D)

Approx 80.2 x 197.6 x 37.4 mm Approx 3.16 x 7.78 x 1.48 inches

WEIGHT

Approx 480 g (including batteries) Approx 16.94 oz (including batteries)

General Features

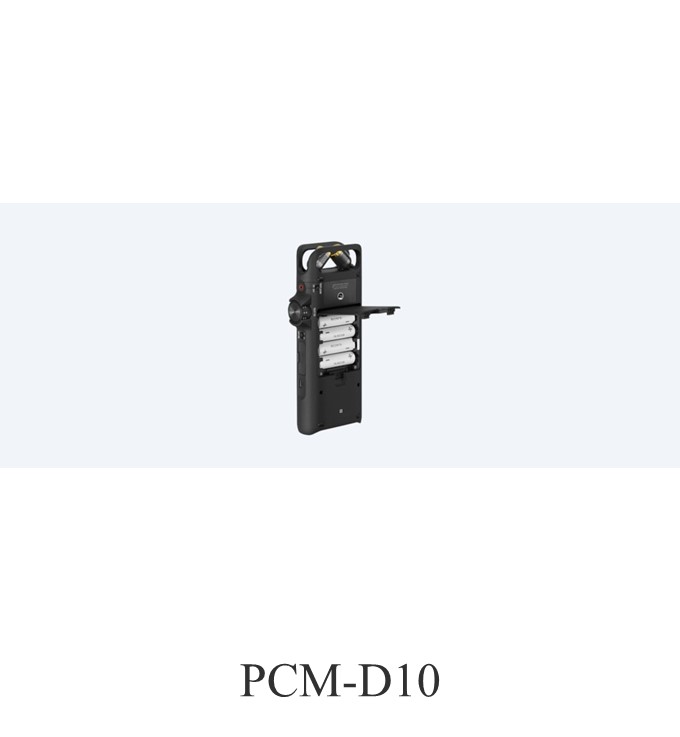

BATTERY TYPE

Dry Battery

BATTERY TYPE (PROVIDED)

LR6 (size AA) x 4

BUILT-IN MEMORY

16GB

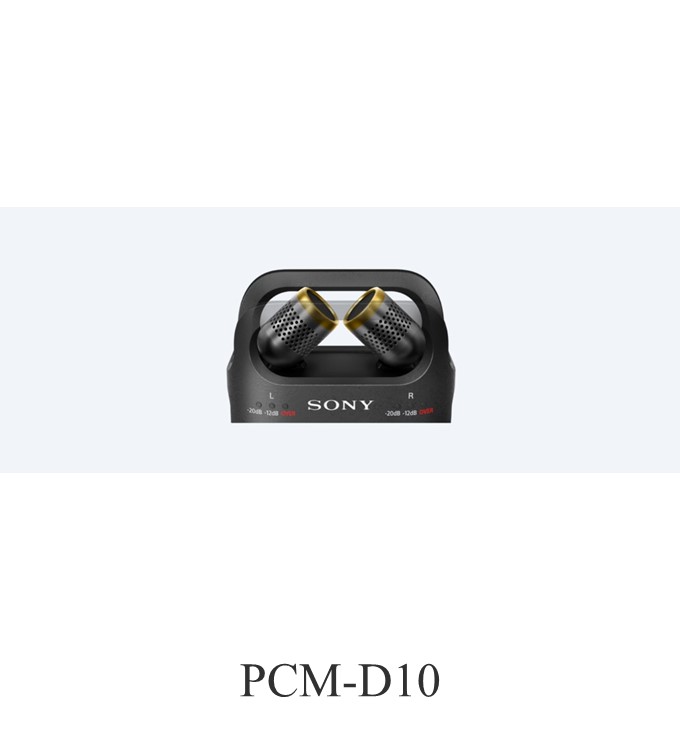

BUILT-IN MICROPHONE

Stereo

CALENDAR SEARCH

Yes

LCD BACKLIGHT

Yes

MAXIMUM FILES PER FOLDER

199

MAXIMUM FILES (TOTAL)

5000

MENU LANGUAGE

GB/CT

PC CONNECTIVITY

Yes

PLAYBACK FORMAT

MP3/AAC-LC/WMA/LPCM/FLAC

RECORDING FORMAT

LPCM/MP3

USB CONNECTION CHARGING

No

Recording

MAX. RECORDING TIME LPCM 192KHZ, 24BIT

3 Hrs 15 Min

MAX. RECORDING TIME LPCM 176.4KHZ, 24BIT

3 Hrs 35 Min

MAX. RECORDING TIME LPCM 96KHZ, 24BIT

6 Hrs 35 Min

MAX. RECORDING TIME LPCM 96KHZ, 16BIT

9 Hrs 55 Min

MAX. RECORDING TIME LPCM 88.2KHZ, 24BIT

7 Hrs 10 Min

MAX. RECORDING TIME LPCM 88.2KHZ, 16BIT

10 Hrs 45 Min

MAX. RECORDING TIME LPCM 48KHZ, 24BIT

13 Hrs 15 Min

MAX. RECORDING TIME LPCM 48KHZ, 16BIT

19 Hrs 50 Min

MAX. RECORDING TIME LPCM 44.1KHZ, 24BIT

14 Hrs 25 Min

MAX. RECORDING TIME LPCM 44.1KHZ, 16BIT

21 Hrs 35 Min

MAX. RECORDING TIME MP3 320KBPS

95 Hrs 25 Min

MAX. RECORDING TIME MP3 128KBPS

238 Hrs 0 Min

BATTERY LIFE FOR RECORDING LPCM 192KHZ, 24BIT

Approx 32 Hrs

BATTERY LIFE FOR RECORDING LPCM 96KHZ, 24BIT

Approx 36 Hrs

BATTERY LIFE FOR RECORDING LPCM 48KHZ, 24BIT

Approx 44 Hrs

BATTERY LIFE FOR RECORDING LPCM 44.1KHZ, 16BIT

Approx 44 Hrs

BATTERY LIFE FOR RECORDING MP3 320KBPS

Approx 44 Hrs

FREQUENCY RESPONSE LPCM 192KHZ, 24BIT

20-60,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 176.4KHZ, 24BIT

20-60,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 96KHZ, 24BIT

20-40,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 96KHZ, 16BIT

20-40,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 88.2KHZ, 24BIT

20-40,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 88.2KHZ, 16BIT

20-40,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 48KHZ, 24BIT

20-22,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 48KHZ, 16BIT

20-22,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 44.1KHZ, 24BIT

20-20,000 Hz (0~-3dB)

FREQUENCY RESPONSE LPCM 44.1KHZ, 16BIT

20-20,000 Hz (0~-3dB)

FREQUENCY RESPONSE MP3 320KBPS

20-20,000 Hz (0~-3dB)

FREQUENCY RESPONSE MP3 128KBPS

20-16,000 Hz (0~-3dB)

MANUAL RECORDING LEVEL ADJUSTMENT

Yes

SCENE SELECT

No

CROSS-MEMORY RECORDING

Yes

PRE-RECORDING

Yes

SYNC RECORDING FUNCTION

No

RECORDING MONITOR

Yes

LIMITER FUNCTION

Yes

NOISE-CUT FILTER

No

LOW-CUT FILTER

Yes

ADD/OVERWRITE RECORDING

No

FM RADIO RECORDING

No

AM RADIO RECORDING

No

VOR

No

REMOTE CONTROL APP FROM SMARTPHONE (REC REMOTE)

Yes

Playback & Edit

A-B REPEAT

Yes

ALARM PLAYBACK

No

DIGITAL NOISE CANCELING

No

DIGITAL PITCH CONTROL (SPEED CONTROL)

Yes

DIGITAL VOICE UP

No

DIVIDE

Yes

EASY SEARCH

Yes

ERASE

Yes

FILE COPY

Yes

FOLDER NAME CHANGE (WITHOUT USING PC)

Yes

FULL DIGITAL AMPLIFIER

No

GRAPHIC EQUALIZER

Yes

KEY CONTROL

Yes

MOVE FILE

Yes

NOISE CUT

No

PROTECT

Yes

TRACK MARK

Yes

Interface

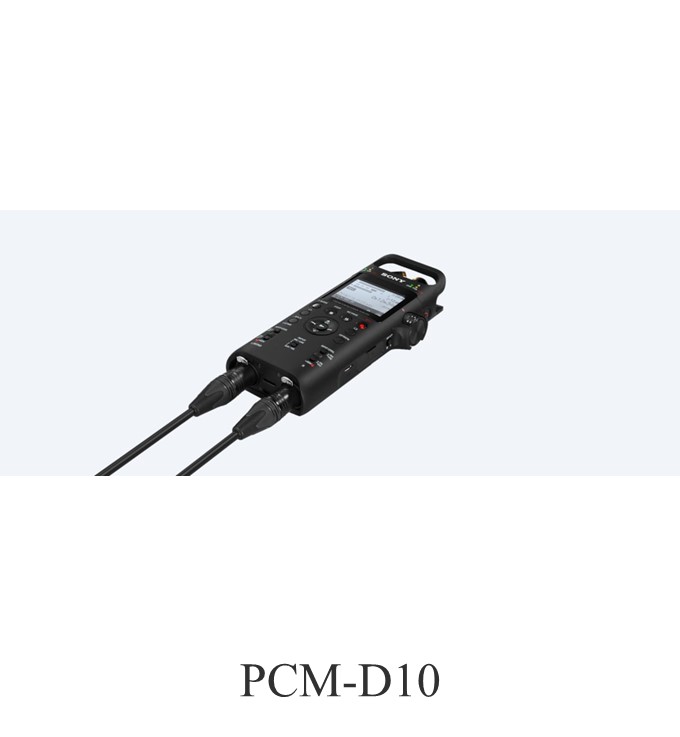

INPUT AND OUTPUT TERMINALS

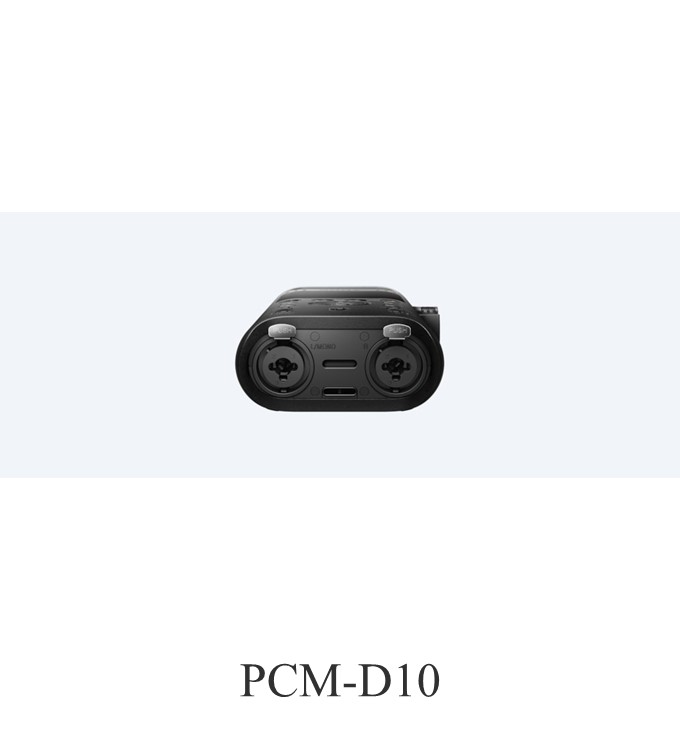

MIC IN/LINE IN jack (stereo mini-jack) XLR/TRS jack(s) Headphone jack (stereo mini-jack) LINE OUT jack (stereo mini-jack) USB port (USB Type-C™ port) Hi-speed USB compatible SD card slot

BLUETOOTH

Communication method: Bluetooth Standard version 4.0 Maximum communication range: approx. 10 m (33 ft) Frequency band: 2.4 GHz band (2.4000 GHz - 2.4835 GHz) Compatible Bluetooth profiles: A2DP/AVRCP/SPP Supported Codec: SBC

NFC

Yes

What's In The Box

• =       USB Type-C™ cable (USB-A to USB-C)
• =       Wind screen
• =       Carrying pouch
• =       LR6 (size AA) alkaline batteries
• =       Operating Instructions
• =       SOUND FORGE Audio Studio 12 Installation Guide
